Acid And Alkali Resistance Stainless Steel Filter Mesh Plain Weave 200 250 300 Mesh

Hebei Reking Wire Mesh CO.,Ltd
Contact Now

Acid And Alkali Resistance Stainless Steel Filter Mesh Plain Weave 200 250 300 Mesh

Brand Name : R&K

Model Number : RK-05

Certification : ISO

Place of Origin : China

MOQ : 10 Meter

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 300 meter per week

Delivery Time : 3-7 work days

Packaging Details : Wooden Box or plastic bag

Product name : stainless steel wire screen printing mesh

Width : 1.2m

Wire diameter : 50 micron stainless steel 316L wire,0.025mm-0.10mm,Requirement

Printing : Stainless Steel Printing

Length : 30m/roll 50m/roll or as your request

Feature : High Tension Low Elongation

Contact Now

Acid And Alkali Resistance Plain Weave 200 250 300 Mesh Stainless Steel Filter Mesh


Description

The tension is higher than that of the polyester mesh and the stability is high, the wire diameter opening is quite uniform, and the error rate is extremely small.

Under high tension, the wire mesh stretches very little, and it will not lose elasticity due to deformation under extremely high tension, and the steel wire is wear-resistant Excellent performance far exceeds fiber, prevents static electricity and guarantees printing effect.

Application

1. The stainless steel printing screen is suitable for printing and plate making, and the surface of the substrate is curved.

2. Especially suitable for use in harsh environments, multi-color overprinting, batch printing, gradation printing, and precision printing are all suitable.

3. At the same time, it is also widely used in textile, glass, ceramics, metal, plastic, rubber and other industries.

4. Melt filtration in high-tech fields such as aviation, aerospace, petrochemical, etc.

Specification

Mesh/inch
Wire Dia.
(μm)
Opening (μm)
Open Area
(%)
Thickness
(μm)
Through ink
(cm³/m²)
Calender thickness
(μm)
200*200
40
87
46.9
81-82
43.0
62-64
250*250
30
72
49.7
63-64
30.0
45-48
250*250
35
67
43
72-73
32.0
54-56
290*290
20
68
41.7
43-44
18.4
29-30
300*300
30
55
38
66-68
28.0
45-49
325*325
23
55
49.8
50-52
25.4
33-48
325*325
28
50
41.2
63-64
26.4
47-51
325*325
30
48
38
66-68
24.0
45-49
400*400
23
41
40.7
50-54
19.0
35-48

Acid And Alkali Resistance Stainless Steel Filter Mesh Plain Weave 200 250 300 MeshAcid And Alkali Resistance Stainless Steel Filter Mesh Plain Weave 200 250 300 Mesh


Product Tags:

alkali resistance stainless steel filter mesh



200mesh stainless steel filter mesh



acid resistance filter mesh stainless steel


China Acid And Alkali Resistance Stainless Steel Filter Mesh Plain Weave 200 250 300 Mesh wholesale

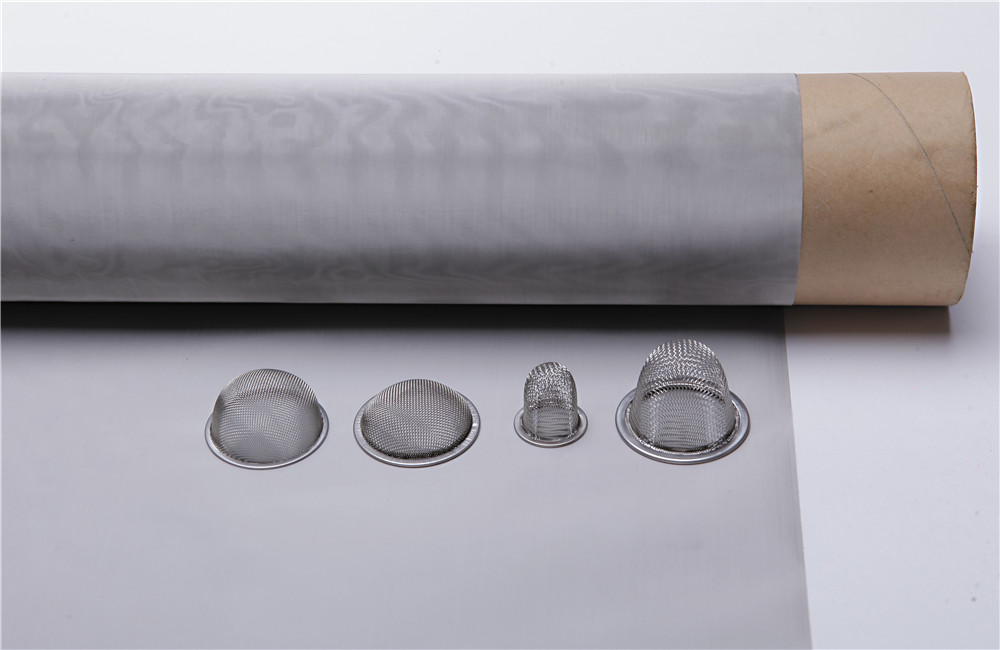

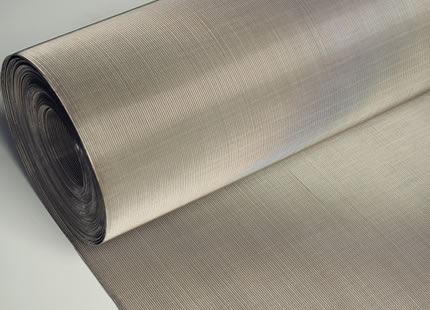

Acid And Alkali Resistance Stainless Steel Filter Mesh Plain Weave 200 250 300 Mesh Images
