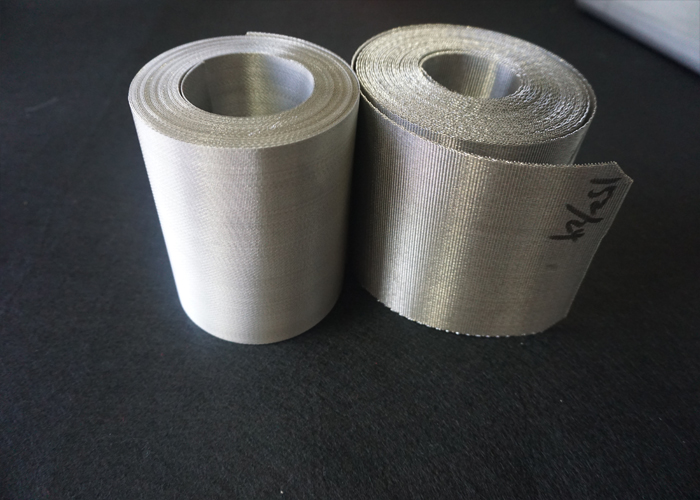

High filtration accuracy 60*300 50*600 80*680 stainless seel dutch mesh
Product Description
It is woven from high-quality stainless steel wire. The main feature is that there is a large contrast between the warp and weft wire diameters and densities, so the mesh thickness, filtration accuracy and service life are significantly improved compared to square mesh, and its filtration accuracy cannot be achieved with square mesh.
Weaving form: plain weave stacked damask weave, twill weave stacked damask weave, reverse stacked damask weave.
Material: copper wire, nickel wire, stainless steel wire
Performance: It has the characteristics of stable and fine filtering performance.
Uses: used in aerospace, petroleum, chemical and other industries.
The factory can design and produce various types of products according to user needs, and undertake processing of incoming materials.
Features and Applications
► Easy to use and convenient for long-distance transportation;
► The net surface is flat, the mesh is uniform, the welding point is firm, and the local machining performance is good;
► Good anti-corrosion, with strong anti-corrosion and anti-oxidation performance
► Used for precision pressure filter, fuel filter, vacuum filter
►Suitable for aerospace, petroleum, chemical, chemical fiber, rubber, tire manufacturing, metallurgy, medicine, food and other industries.
►The product is mainly used for gas and liquid filtration and other media separation.
Specification
| Mesh | Warp*weft(mm) | Aperture(um) | Thicknees(mm) |
| 20*270 | 0.25*0.2 | 119 | 0.65 |
| 40*540 | 0.18*0.10 | 70 | 0.38 |
| 70*600 | 0.14*0.09 | 31 | 0.32 |
| 80*680 | 0.112*0.08 | 28 | 0.272 |
| 150*1400 | 0.063*0.036 | 15 | 0.143 |
| 200*1600 | 0.05*0.032 | 10 | 0.114 |
| 300*2100 | 0.036*0.025 | 6 | 0.086 |
Detailed
Product Tags:
|
|

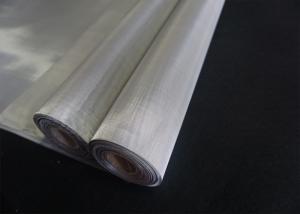

2300 Mesh Dutch Woven Wire Mesh 304 Material Images
|
