Large Quality of Stock Polyester Screen Printing Mesh For Printing Ceramic Coffee Mugs
Description of monofilament bolting cloth:
Our polyester material yarn imported from Japan,Switzerland,and then we will inspect the yarn again ,for example we will test the tolerance of the yarn ,the tension strength of the yarn ,and physics test and so on!
Before production ,we will warping the yarn and drawing the heddle ,and then drawing in reed.
And then after production ,we will recehck if the mesh count is accurate,and check the thickness if up to standard,and also will check the thread diameter and hole size ,and other elongation test ,tension test!
When packing we will also cut the poor quality cut ,this is the reason our mesh roll not all is 50m or 100m.
| product name | Yellow monofilament polyester screen printing mesh polyester bolting cloth for textile printing |
| Thread diameter | 55micron |
| Aperture size | 80micron |
| Fabric thickness | 80micron |
| Weight | 51 g/m2 |
| weave | plain weave |
Application of monofilament bolting cloth
Reking bolting cloth are widely used inTextile printing industry,Garment industry,glass, ceramic,electronic components,ads,banners,magazines printing,plate making,PCB,liquid crystal display ect...
| 13T-120T | Textile/t-shirts/garment,advertising,fashion and sports cloting ect. |
| 39T-165T | Pharmacy appliance,Home appliance,Auotomotive glass,Glass bottle |
| 13T-165T | Domestic ceramic,indirect ceramic,ceramic tiles etc. |
| 13T-165T | Sticker,lables,Small/Large Format UV graphics,package graphics,plastic decoration ect. |
| 36T-165T | Plastic package,plastic bottle,advertising,plastic decoration |
| 72T-165 | Plastic packge,plastic container,advertising,platic decoration. |
Specification
| Count (INCH) | Count (CM) | Diameter (UM) | Opening (UM) | Opening aera(%) | Thickness (UM) | Volume (CM3/CM2) | Max tension (N/CM) |
| 90T | 230 | 48 | 56 | 25 | 78 | 50 | 26-28 |
| 100 | 39 | 55 | 200 | 61 | 88 | 53 | 25-30 |
| 100 | 39 | 80 | 176 | 47 | 150 | 70 | 35-37 |
| 110 | 43 | 80 | 153 | 43 | 130 | 56 | 35-37 |
| 120 | 47 | 55 | 158 | 55 | 88 | 48 | 25-30 |
| 120 | 47 | 71 | 142 | 44 | 135 | 59 | 30-34 |
| 135 | 53 | 55 | 133 | 50 | 86 | 43 | 25-30 |
| 135 | 53 | 64 | 125 | 44 | 100 | 44 | 26-31 |
| 150 | 59 | 64 | 105 | 38 | 100 | 38 | 26-31 |
| 160 | 64 | 55 | 101 | 42 | 98 | 41 | 25-30 |
| 160 | 64 | 64 | 92 | 35 | 120 | 42 | 30-34 |
| 180 | 72 | 55 | 84 | 37 | 100 | 37 | 25-30 |
| 200 | 80 | 48 | 77 | 38 | 74 | 28 | 27-29 |
| 195 | 77 | 55 | 75 | 33 | 105 | 34 | 25-30 |
| 230 | 90 | 48 | 63 | 33 | 85 | 28 | 27-29 |
| 250 | 100 | 40 | 60 | 36 | 70 | 25 | 20-24 |
| 280 | 110 | 40 | 51 | 31 | 85 | 26 | 20-24 |
| 305 | 120 | 40 | 43 | 27 | 68 | 18 | 20-24 |
| 355 | 140 | 34 | 37 | 27 | 58 | 15 | 22-24 |
| 380 | 150 | 31 | 36 | 29 | 46 | 13 | 21-23 |
| 420 | 165 | 31 | 30 | 24 | 46 | 11 | 21-23 |
Characteristic of the monofilament bolting cloth:
- Monofilament bolting cloth can transfer thick ink deposits and creat special effects,so 30 mesh per inch to 300 mesh per inch polyester screen printing meshes are widely used in printing high qulity commerical garments.
- Any ink deposits and any ink system are possible with screen printing,so polyester monofialment bolting cloth is widely used to print knitted fabric,blankets,silk even coarse denim.
- Monofilament bolting cloth offers many superiorities of ink transparency,ink briliance,various decorative CDs and DVDS printing process.
- Polyester monofilament bolting cloth is also used in glass printing,such as pharmacy home appliance,glass appliance,microwaves oven,automotive glass(black mask for the front,side and back windows),glass containers( perfumes,cosmetics,drink bottles).
1W grade work shop of the monofilament bolting cloth:
Product Tags:
|
|

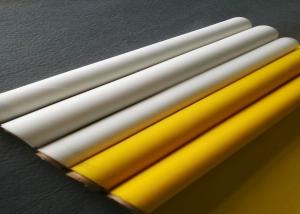

55 Micron Polyester Screen Printing Mesh Images
|
