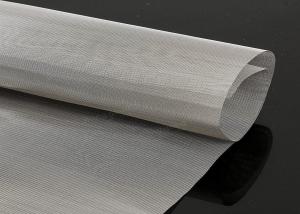

304 316 corrosion resistant 300 400 micron stainless steel screen printing mesh material
Description of stainless steel screen mesh:
Stainless steel screen printing mesh is the next generation of wire meshes woven with tungsten wire which has even greater physical
stability and print repeatability than the above super stainless steel wire mesh. Comparison of tensile
strength per sq.mm is shown.
it is developed for specific screen-printing applications that require a heavy ink deposit.
The magnified photo below shows unique structure of it's compared with standard wire mesh.
| Material | SUS304,304L,316,316L |
| Hole Shape | Square |
| Width | 1.0-1.5m |
| size per roll | usually 1meter or 1.2meter wide,30meter per roll |
| wire diameter | Min diameter is0.018mm |
| aperture size | Min is 1Micron |
Stainless steel filter wire mesh refers to stainless woven wire mesh used in filter liquid,gas and pulp.The opening can be square, rectangular or special opening.Normally,this kind of wire mesh has standard opening sizes,uniform opening, good permeability and high strength. The raw materials should be chosen according to different environments of applications.
Features of stainless steel wire mesh:
- Acid and alkali resistant
- Corrosion resistant
- Abrasion resistance, durable
- Easy to plastic processing, so that the possibility of the use of stainless steel screens diversified
- High finish, no surface treatment, maintenance is simple
- Standard size,uniform opening,Precise control fiter rating etc
Application of stainless steel mesh roll :
stainless steel filter wire mesh is used in petroleum,chemical industry,chemical fiber, food
,medicine,fertilizer,paper-making,airspace.
Specification of the stainless steel mesh roll:
| Mesh/inch | Wire diameter (inch) | Aperture (inch) | Open area | Weight (Sqaure meter |
| 1*1 | 0.080 | 0.920 | 92.0 | 2.0 |
| 2*2 | 0.063 | 0.437 | 87.4 | 2.5 |
| 3*3 | 0.054 | 0.279 | 83.8 | 2.7 |
| 4*4 | 0.047 | 0.203 | 81.2 | 2.7 |
| 5*5 | 0.041 | 0.159 | 79.5 | 2.6 |
| 10*10 | 0.024 | 0.076 | 74.9 | 1.8 |
| 12*12 | 0.020 | 0.064 | 75.9 | 1.5 |
| 14*14 | 0.020 | 0.052 | 71.9 | 1.75 |
| 16*16 | 0.018 | 0.045 | 71.2 | 1.6 |
| 18*18 | 0.016 | 0.0398 | 69.4 | 1.4 |
| 20*20 | 0.009 | 0.041 | 76.0 | 0.57 |
| 30*30 | 0.012 | 0.0382 | 63.9 | 1.35 |
| 40*40 | 0.0098 | 0.015 | 72.1 | 1.25 |
| 50*50 | 0.0079 | 0.0121 | 36.7 | 1.0 |
| 60*60 | 0.0047 | 0.012 | 38.7 | 0.42 |
| 80*80 | 0.0047 | 0.0107 | 45.5 | 0.58 |
| 100*100 | 0.0039 | 0.006 | 59.8 | 0.50 |
| 120*120 | 0.0027 | 0.0056 | 67.7 | 0.29 |
| 150*150 | 0.0024 | 0.0043 | 41.6 | 0.27 |
| 165*165 | 0.0018 | 0.0043 | 50 | 0.167 |
| 180*180 | 0.0019 | 0.0036 | 64.5 | 0.22 |
| 200*200 | 0.0019 | 0.003 | 60.6 | 0.24 |
| 250*250 | 0.0012 | 0.0028 | 49.8 | 0.11 |
| 270*270 | 0.0014 | 0.0023 | 60 | 0.16 |
| 300*300 | 0.0012 | 0.0022 | 57 | 0.13 |
| 325*325 | 0.0014 | 0.0017 | 55.3 | .0.20 |
| 400*400 | 0.0012 | 0.0013 | 52.7 | 0.18 |
| 500*500 | 0.0009 | 0.001 | 50.7 | 0.15 |
| 635*635 | 0.0007 | 0.0008 | 55.0 | 0.10 |
