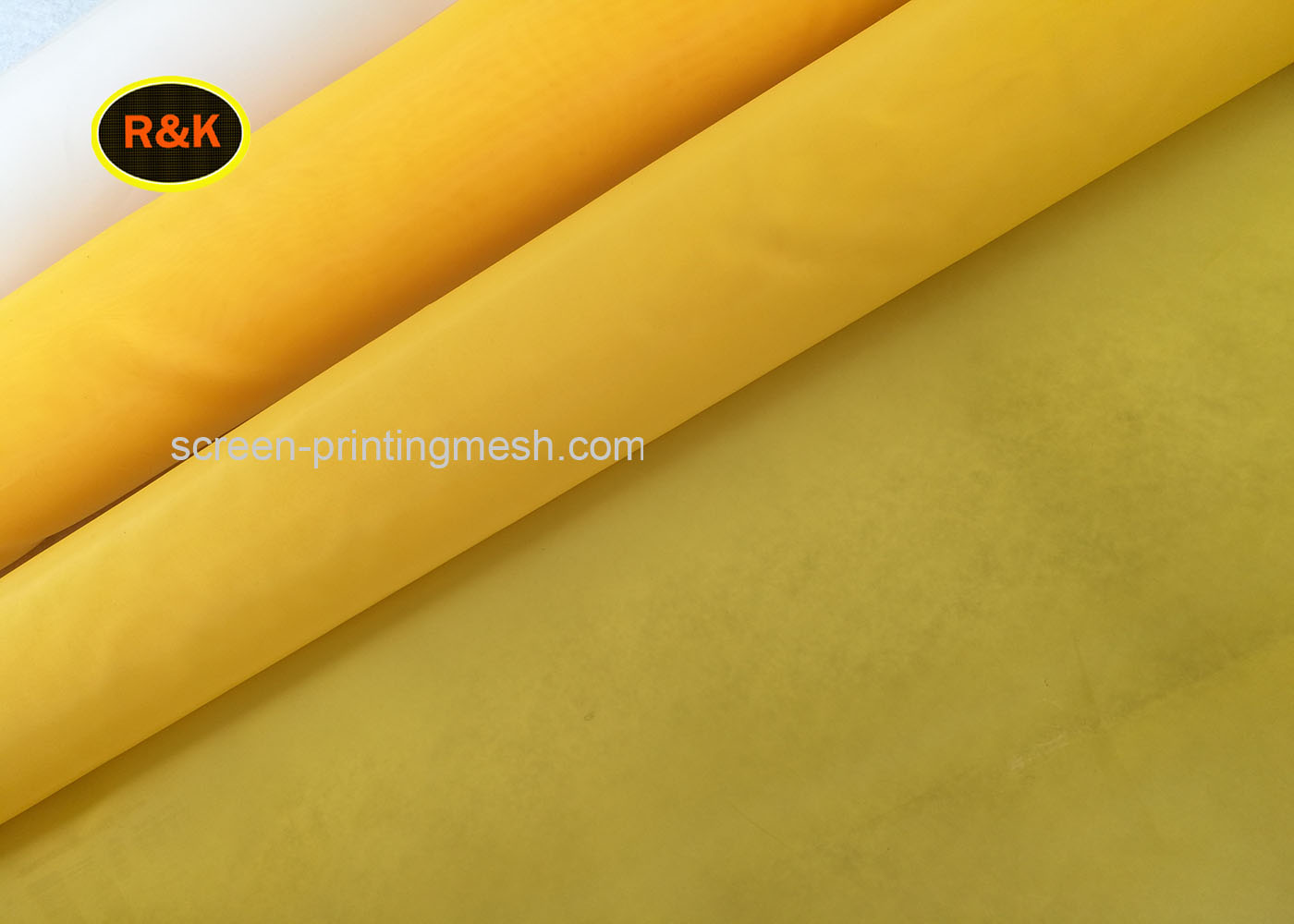

Multi Function Nylon Micron Screen Nylon Screen Printing Mesh For Solar Printing
Description For Nylon Screen Printing Mesh:
Polyester printing mesh commonly used in ceramic printing,glass printing,electronic components ,graphic printing,metal printing,chemical printing,platic printing. and so on,it can save many cost to product what you want.
| Material | 100% polyester ,monofilament yarn |
| Weave style | Plain weave |
| Max width. | the max width upto 3.60 meter.high mesh upto 3.05meter |
| Certification | ISO9001:2000,SGS,FDA,MSDS |
| Usage | textile printing,leather printing,glass printing,ceramic printing,touch screen printing... |
Specification For The Nylon Screen Printing Mesh:
| Mesh Count Diameter (Mesh/cm um) | Mesh Count (Mesh/inch) | Weave | Aperture (um) | Thread Diameter (um) | Opening (%) | Thickness (um) | Thickness Tollerance (+/- um) | Theoretical Ink (cm3/m2) | Weight (g/m2) | Tension value (N/CM) |
| 165-31PW (S) | 420 | 1:1 | 23 | 31 | 15 | 48 | 2 | 7 | 36 | 25 |
| 150-34PW(T) | 380 | 1:1 | 23 | 34 | 13 | 55 | 3 | 6.5 | 42 | 30 |
| 150-31PW(S) | 380 | 1:1 | 32 | 31 | 23 | 49 | 3 | 11 | 32 | 24 |
| 140-34TW(T) | 355 | 2:1 | 33 | 34 | 21 | 56 | 3 | 12 | 41 | 27-28 |
| 140-34PW(T) | 355 | 1:1 | 31 | 34 | 20 | 53 | 3 | 10 | 39 | 26-28 |
| 140-31PW(S) | 355 | 1:1 | 36 | 31 | 26 | 48 | 2 | 12 | 30 | 22-24 |
| 130-34PW(T) | 330 | 1:1 | 40 | 34 | 27 | 55 | 3 | 15 | 37 | 27-28 |
| 120-40PW(HD) | 305 | 1:1 | 37 | 40 | 20 | 63 | 3 | 13 | 44 | 33-35 |
| 120-34PW (T) | 305 | 1:1 | 45 | 34 | 30 | 55 | 3 | 16 | 35 | 25-26 |
| 120-31PW (S) | 305 | 1:1 | 49 | 31 | 35 | 49 | 3 | 17 | 26 | 20-23 |
| 110-40PW (HD) | 280 | 1:1 | 48 | 40 | 27 | 64 | 3 | 17 | 40 | 30-32 |
| 100-40PW (T) | 255 | 1:1 | 58 | 40 | 33 | 63 | 3 | 21 | 37 | 26-27
|
Characteristic For Nylon Screen Printing Mesh:
Low-enlongation;
Heat and moisture;
Abrasion;
Fast printing speeds;
No surface treatment;
Improved registration due to stable tension;
High tenson threshold and braking point;
Faster tension stabilization;
Improved fabric strength;
Loss tension loss during the strentching process;
Application For Nylon Screen Printing Mesh:
Ceramic Printing
Glass Printing
Textile Printing
Electronic Components Printing
PCB Printing
Solar Printing
Touch Printing
