316 Stainless Steel Wire Mesh Screen / 304 Stainless Steel Wire Net Silver Color.
Description of stainless steel wire mesh:
| material | SUS304N,304,316,316L, |
| weave type | plain weave |
| size per roll | usually 1meter or 1.2meter wide,30 or 50 meter per roll |
| wire diameter | 0.018-0.02mm |
| aperture size | 41-268micron |
| hole shape | square hole |
Through the use of carefully selected special alloy materials, and the use of advanced weaving technology to make stainless steel printing network structure is particularly compact, while ensuring the thickness of the tolerances within the tolerance range of high tension, the degree of extension of the net, Of the precision and thus more suitable for high-density printing.
Features of stainless steel wire mesh:
- High tension.Much higher than common polyester mesh,and this property is very stable
- Super Precision.Uniform wire diameter and aperture with extremely low difference
- Low Elongation.Very small elongation of wire mesh at high tension
- High Flexbility.The wire mesh will not lose elasticity at extreme tension
- High Corrosion Resistance.the excellent corrosion resistance of stainless steel wire exceeds polyester fiber
- Non-electrostatic.To avoid affects of nonelectrostatic for printing and ensure the safety of printing
- Good Heat-melting Resistance.Special features of steel wire mesh.Suitable for heat-melting ink
- Good Solvent Resistance.To avoid the affects of any solvents to wire mesh and to ensure the safety of printing
Application of stainless steel wire mesh:
Stainless steel printing network for printing plate, the surface of the printed matter for the surface. Particularly suitable for use in harsh environments, multi-color overprint, batch printing, tone printing, precision printing Safe. At the same time also widely used in textile, glass, ceramics, metals, plastics, rubber and other industries, as well as aviation, aerospace, petrochemical and other high-tech areas such as filtration.
Specification:
| Mesh/inch | Wire diameter (inch) | Aperture (inch) | Open area | Weight (Sqaure meter) |
| 1*1 | 0.080 | 0.920 | 92.0 | 2.0 |
| 2*2 | 0.063 | 0.437 | 87.4 | 2.5 |
| 3*3 | 0.054 | 0.279 | 83.8 | 2.7 |
| 4*4 | 0.047 | 0.203 | 81.2 | 2.7 |
| 5*5 | 0.041 | 0.159 | 79.5 | 2.6 |
| 10*10 | 0.024 | 0.076 | 74.9 | 1.8 |
| 12*12 | 0.020 | 0.064 | 75.9 | 1.5 |
| 14*14 | 0.020 | 0.052 | 71.9 | 1.75 |
| 16*16 | 0.018 | 0.045 | 71.2 | 1.6 |
| 18*18 | 0.016 | 0.0398 | 69.4 | 1.4 |
| 20*20 | 0.009 | 0.041 | 76.0 | 0.57 |
| 30*30 | 0.012 | 0.0382 | 63.9 | 1.35 |
| 40*40 | 0.0098 | 0.015 | 72.1 | 1.25 |
| 50*50 | 0.0079 | 0.0121 | 36.7 | 1.0 |
| 60*60 | 0.0047 | 0.012 | 38.7 | 0.42 |
| 80*80 | 0.0047 | 0.0107 | 45.5 | 0.58 |
| 100*100 | 0.0039 | 0.006 | 59.8 | 0.50 |
| 120*120 | 0.0027 | 0.0056 | 67.7 | 0.29 |
| 150*150 | 0.0024 | 0.0043 | 41.6 | 0.27 |
| 165*165 | 0.0018 | 0.0043 | 50 | 0.167 |
| 180*180 | 0.0019 | 0.0036 | 64.5 | 0.22 |
| 200*200 | 0.0019 | 0.003 | 60.6 | 0.24 |
| 250*250 | 0.0012 | 0.0028 | 49.8 | 0.11 |
| 270*270 | 0.0014 | 0.0023 | 60 | 0.16 |
| 300*300 | 0.0012 | 0.0022 | 57 | 0.13 |
| 325*325 | 0.0014 | 0.0017 | 55.3 | .0.20 |
| 400*400 | 0.0012 | 0.0013 | 52.7 | 0.18 |
| 500*500 | 0.0009 | 0.001 | 50.7 | 0.15 |
| 635*635 | 0.0007 | 0.0008 | 55.0 | 0.10 |
Product Tags:
|
|

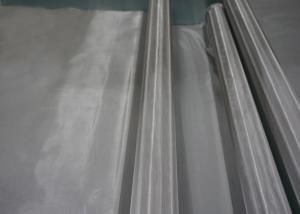

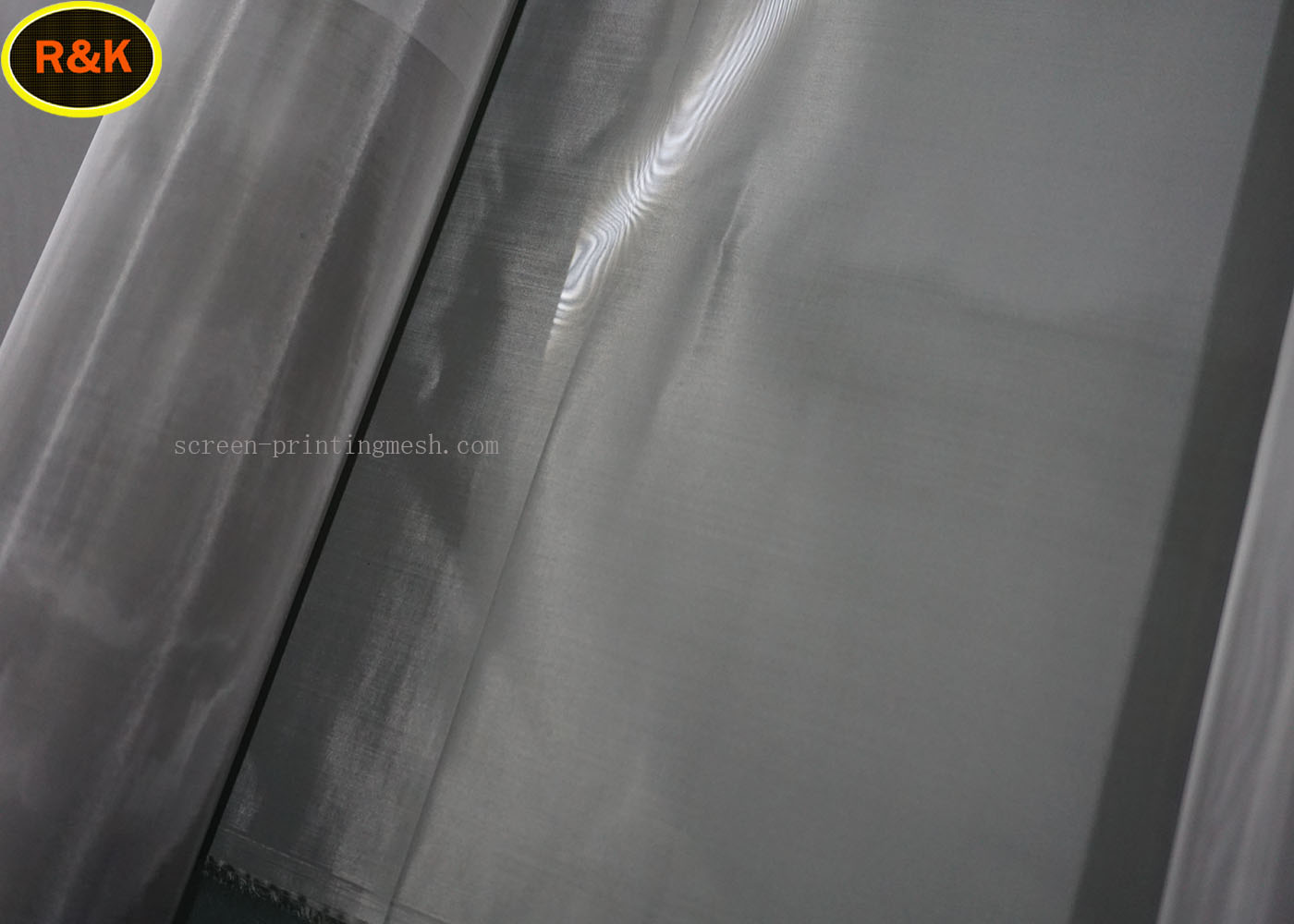

316 Stainless Steel Wire Mesh Screen / 304 Stainless Steel Wire Net Silver Color Images
|
