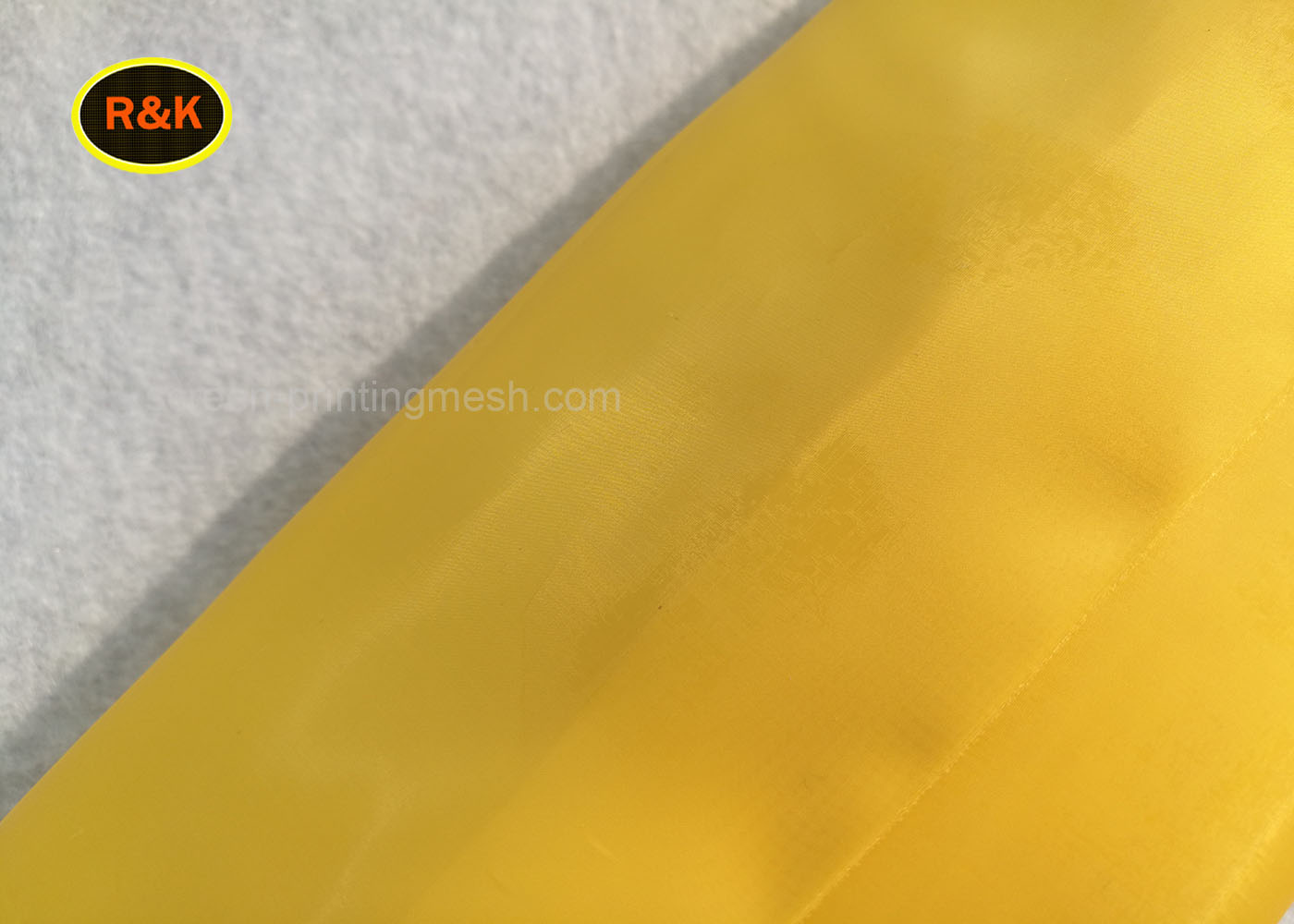

Multi Function 16T-100 Mesh 110 Screen Printing Mesh For Electronic Components Printing

Brand Name : R&K

Model Number : R&K-LSS5

Certification : SGS,FDA,MSDS

Place of Origin : Hebei ,China (Mainland)

MOQ : 100 meters

Price : negotiation

Payment Terms : L/C, T/T, Western Union,Paypla,Trade asscurance,Credit Card

Supply Ability : 2000 meter per week

Delivery Time : within 10-15days.

Packaging Details : Poly bag inside and the carton box outside.

Material : 100% monofilament polyester

Aperture size : 40-42micron

Roll width : Max width 3.05meter

Standard width : 105cm/115cm/145cm/165cm/230cm/330cm/360cm

Weave style : Plain weave

Inventory : we have in stock now

Contact Now

Multi Function 16T-100 Mesh 110 Screen Printing Mesh For Electronic Components Printing

110 Screen Printing Mesh Description :

The manufacture process of the screen printing mesh is to begain with Yarn,and then Warping the yarn,and drawing in heddle then drawing in reed .next weaving with machine.next washing the wire mesh,because it is soft ao we must to heat treatment it ,in order to settting it.The last process is product inspection. For quality assurance we must check the finished product.finally the product is finished.

Material	100% monofilament polyester
Roll width	Max width 3.05meter
Mesh count	195 mesh/inch (77T/ cm)
Weave style	Plain weave
Color	white,yellow
Monofilament	Yes

110 Screen Printing Mesh Specification

Mesh Count Diameter (Mesh/inch μm)	Mesh Count (Mesh /Inch)	Weave	Aperture (μm)	Thread Diameter (μm)	Opening (%)	Thickness(μm)	Thickness Tollerance (+/- μm)	Theoretical lnk(cm3/m2)	Weight (g/m2)
13-150PW(SL)	33	1:1	619	150	64	300	14	128	60
21-80pw(S)	55	1:1	296	80	69	120	9	79	35
21-150PW(SL)	55	1:1	326	150	46	260	14	118	121
24-100PW(T)	60	1:1	316	100	57	136	11	65	81
28-140PW(SL)	70	1:1	217	140	40	195	13	76	125
32-55PW(S)	81	1:1	257	55	67	103	6	67	28
32-64PW(S)	81	1:1	248	64	63	95	6	56	32
32-100PW(T)	81	1:1	212	100	45	165	8	73	75
36-90PW(T)	92	1:1	183	90	44	150	8	65	68
39-55PW(S)	100	1:1	177	55	56	88	6	55	30
40-80PW(T)	103	1:1	166	80	44	133	7	59	60
43-80PW(T)	110	1:1	149	80	41	130	7	53	64
47-45PW(S)	120	1:1	166	45*2	61	80	6	42	40
47-55PW(S)	120	1:1	152	55	51	88	6	48	34
48-70PW(T)	122	1:1	133	70	41	115	6	47	55
53-45PW(S)	135	1:1	143	45*2	57	79	7	41	46
53-55PW(S)	135	1:1	133	55	50	86	6	42	40
54-64PW(T)	137	1:1	115	64	39	100	5	39	51
54-70(PW)HD	137	1:1	109	70	35	116	6	40	62
61-64PW(T)	155	1:1	90	64	31	101	5	30	58
64-55PW(S)	160	1:1	98	55	38	98	5	36	48
64-64PW(T)	160	1:1	85	64	30	115	6	34	61
68-55PW(S)	175	1:1	85	55	34	85	4	28	48
68-64PW(T)	175	1:1	78	64	28	105	5	30	65
72-48PW(S)	182	1:1	90	48	36	78	5	33	39

110 Screen Printing Mesh Features:

1. Faster turnaround time from the screen room to the pressroom;
2. Good diathermancy;
3. High air permeability;
4. Acid resistance and Alkali resistance;
5. Long working life;
6. Hard wear;
7. Three factories for manufacturing;
8. Imported weaving machines from Switzerland and Italy;

9. Low enlongation;

10. Acid resistant;

11. Improved fabric strength;

110 Screen Printing Mesh Applications:

Ceramic Printing
Glass Printing
Textile Printing
Electronic Comeponeents Printing
PCB printing
Solar Printing
Touch Printing
