Brand Name : R&K
Model Number : Y1819
Certification : ISO9001:2008,SGS,FDA.MSDS
Place of Origin : Hebei province,Chain Mainland.
MOQ : 10 Square meter
Price : negotiation
Payment Terms : L/C, T/T, Western Union,Paypal,Crdit Card.Trade asscurance
Supply Ability : 100rolls per months
Delivery Time : depends on your qty.ususally within 15days.
Packaging Details : kraft paper inside,and bubble film outside,then all be putinto woodcase
Material : SUS 304N,304HP,316.
Roll width : 40"(1020mm),48"(1220mm),60"(1530mm)
Roll length : Staindard size 30meters
Features : Low elongation,acit resistant,corrosion resistant.
Hole size : 400micron
product name : 304 316 stainless steel screen netting printing mesh cloth screen 400 micron
304 316 stainless steel screen netting printing mesh cloth screen 400 micron
Introduce For The Stainless Steel wire mesh cloth:
Stainless steel mesh is our standard stainless steel wire mesh with strict quality control.
It is widely used in many complex screen printing applications, such as printed circuit boards,
Membrane switches, solar cells, ceramic packages, capacitors, etc.
These markets are well recognized for reliable quality and repeatability.
Material: SUS 304N,304HP,316.
Mesh count: 40mesh/inch-400mesh/inch
Wire diameter: 18micron-160 micron
Roll width: 40"(1020mm),48"(1220mm),60"(1530mm),standard size,other wide we can customized for you.
Roll Length: Staindard size 30meters.
Weave style: Plain weave.1:1
Mesh thickness:please see our specification.
Features For Stainless Steel wire mesh cloth:
Low Elongatation;
High tension;
Heat resistant;
High stability;
Non-electrostatic
Abrasion resistant;
Good Solvent resistant;
Chemical & Thremal resistant;
Excellent resistant to abrasion;
Excellent levels of plasticity;
and so on...
Application For Stainless Steel wire mesh cloth:
creamic printing industy,
glass printing industry,
touch screen printing,
the solar battery printing,
LCD printing,
FPD printing,
electronic components printing,
thick film printing ect...
Specification For Stainless Steel wire mesh cloth:
Mesh/ inch | Wire diameter (µm) | opening (%) | Aperture (µm) | Mesh thickness (µm) | One time calender (µm) | Two time calender (µm) | Suggestion tension (N/CM) | Ink thickness (cm3/㎡) |
40 | 160 | 56 | 475 | 300--320 | / | / | / | 179.1 |
50 | 140 | 52 | 368 | 265--280 | / | / | / | 146.9 |
60 | 120 | 51 | 303 | 230--245 | / | / | / | 123.2 |
80 | 120 | 39 | 198 | 235--245 | / | / | / | 92.9 |
80 | 90 | 52 | 228 | 175--180 | / | / | / | 93.1 |
80 | 50 | 71 | 268 | 95--100 | / | / | / | 71.0 |
100 | 100 | 37 | 154 | 195--205 | / | / | / | 77.2 |
120 | 80 | 39 | 132 | 155--165 | / | / | / | 65.8 |
150 | 60 | 42 | 109 | 115--124 | / | / | / | 50.0 |
165 | 45 | 50 | 109 | 88--93 | / | / | / | 45.1 |
165 | 50 | 46 | 104 | 97--105 | / | / | / | 45.6 |
180 | 45 | 48 | 96 | 88--93 | / | / | / | 41.5 |
180 | 50 | 42 | 91 | 96-104 | / | / | / | 41.7 |
200 | 40 | 47 | 87 | 82--83 | 66-68 | 62-64 | 49-53 | 37.5 |
200 | 50 | 37 | 77 | 98--103 | 86-88 | 84-86 | 49-52 | 36.8 |
230 | 35 | 46 | 75 | 81--83 | 56-58 | 55-57 | 47-50 | 28.8 |
250 | 40 | 37 | 62 | 69--74 | 66-68 | 65-67 | 47-50 | 23.2 |
250 | 30 | 50 | 72 | 63--64 | 49-50 | 45-47 | 45-48 | 29.8 |
250 | 35 | 43 | 67 | 77--78 | 58-59 | 54-56 | 45-48 | 31.2 |
270 | 35 | 40 | 59 | 71--75 | 60-62 | 57-59 | 42-45 | 30.1 |
300 | 30 | 42 | 55 | 67--68 | 51-52 | 47-49 | 40-45 | 28.8 |
325 | 30 | 38 | 48 | 62--66 | 50-52 | 49-51 | 40-42 | 28.2 |
325 | 28 | 41 | 50 | 63--64 | 49-51 | 45-47 | 40-42 | 26.4 |
325 | 23 | 50 | 55 | 49--53 | 38-40 | 35-37 | 39-40 | 25.4 |
350 | 25 | 43 | 48 | 46--49 | 42-43 | 39-41 | 38-40 | 18.7 |
400 | 18-19 | 51.3 | 46 | 536-40 | 27-28 | 25-27 | 38-40 | 20.0 |
400 | 23 | 41 | 41 | 50--54 | 39-40 | 35-37 | 37-40 | 22.0 |

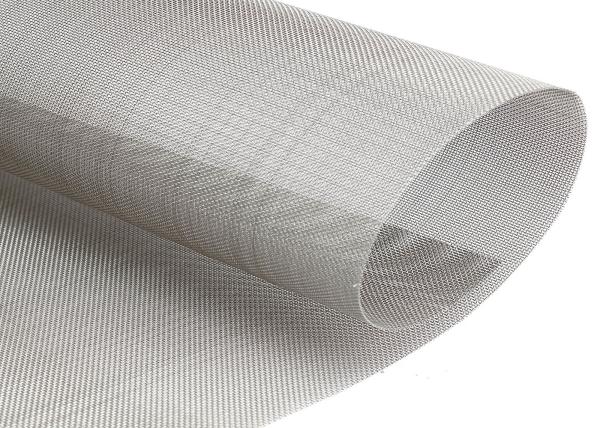

Photos for the Stainless Steel wire mesh cloth:
The workshop of the stainless steel steel wire mesh cloth:
![]() |
Staindard Size 304 316 Stainless Steel Screen Printing Mesh Cloth 400 Micron Images |
