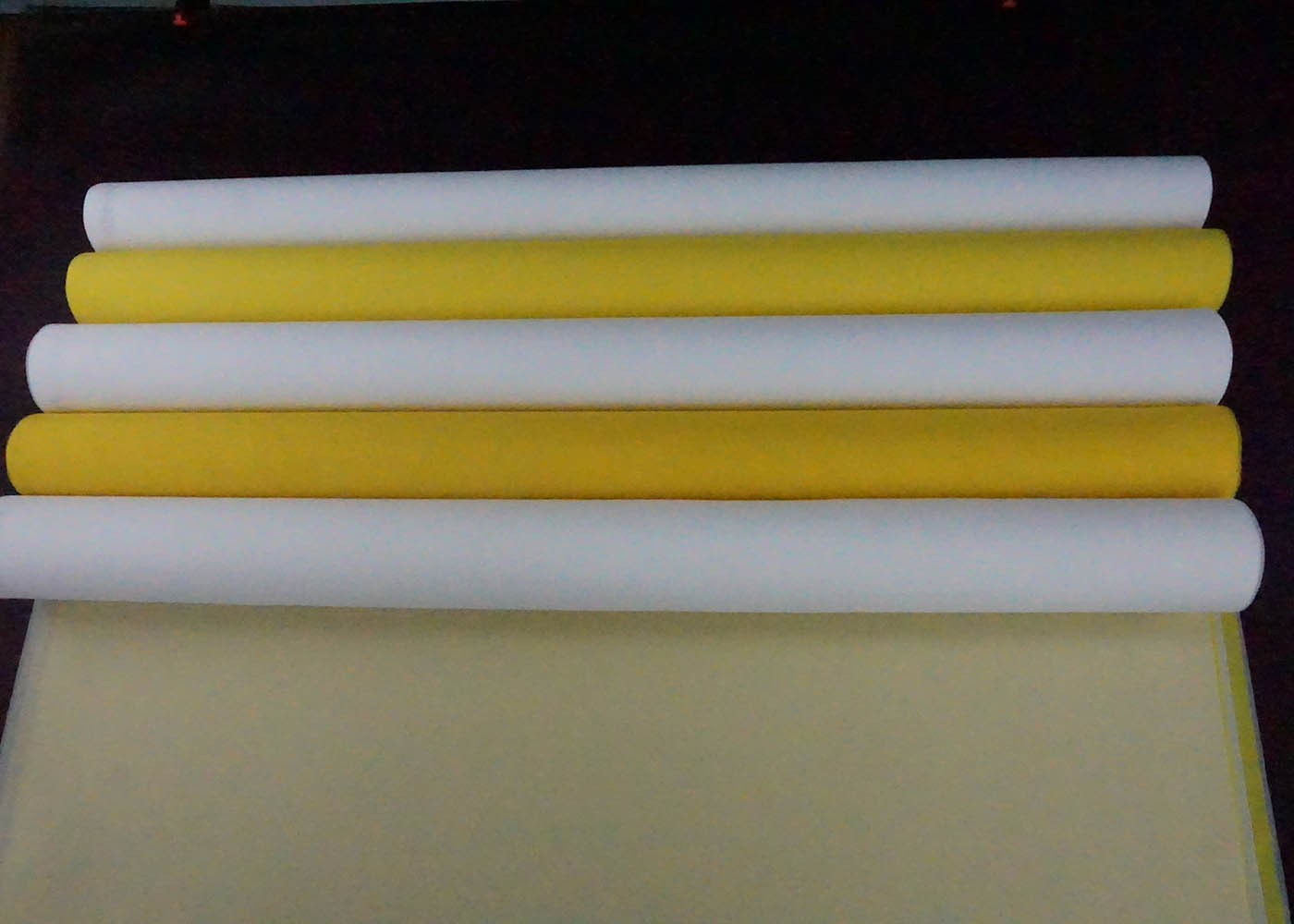

84 Micron polyester Screen printing Mesh , Silk Bolting Cloth For PCB / Glass
Description
- 20 and 40 mesh is used mostly for glitter inks that need a very open mesh for printing.
- 60 mesh is usually used for printing smaller glitter and most shimmer inks.
- 80 mesh is also used for printing shimmer inks and for laying down thick layers of ink for high-density printing. It also works well for printing foil adhesive.
- 110 mesh makes printing white and other thick inks easy. It is ideal for spot color printing since it holds less detail than 155 mesh and lays down a thick layer of ink for maximum coverage.
- 120 mesh is one of the most rifely mesh sizes in screen printing. It works great for printing white ink and other colored inks that have a thicker viscosity.
- 155 mesh is great for general purpose textile printing with basic to semi-fine detail. It will hold a little finer detail than a 110 mesh while also working well with thinner inks.
- 200 mesh is great for printing more detailed prints that need a thinner layer of ink than a 155 mesh. It works very well with thinner inks and is a good middle-range mesh size.
- 230 mesh is great for high-end fine detail printing. A 230 mesh can hold halftones very well and also lets a little more ink through then a 305 mesh.
- 280 mesh screens are great for high-end fine detail printing. A 280 mesh can hold halftones very well and also lets a little more ink through then a 305 mesh.
- 305 mesh holds extremely high detail, letting through only a thin layer of ink.
Application:
Polyester Screen Printing Mesh is widely used in Textile printing,T-shirt printing,ceramic printing,glass printing and PCB printing industry.
Specification of polyester screen printing mesh
| COUNT (INCH) | COUNT (CM) | DIAMETER (UM) | OPEPING (UM) | OPEN AREA(%) | THICKNESS(UM) | VOLUME (CM³/CM²) | MAX TEN SION(N/CM) |
| 15 | 6 | 400 | 1270 | 64 | 720 | 460 | 30-60 |
| 18 | 7 | 350 | 1078 | 64 | 640 | 410 | 30-60 |
| 20 | 8 | 300 | 950 | 58 | 550 | 319 | 30-60 |
| 25 | 10 | 250 | 750 | 56 | 620 | 347 | 30-60 |
| 30 | 250 | 150 | 583 | 49 | 450 | 201 | 30-60 |
| 30 | 200 | 250 | 683 | 67 | 450 | 184 | 30-60 |
| 40 | 16 | 200 | 425 | 46 | 300 | 220 | 30-60 |
| 50 | 20 | 80 | 420 | 71 | 120 | 85 | 35-37 |
| 50 | 20 | 150 | 350 | 49 | 260 | 127 | 30-60 |
| 60 | 24 | 100 | 316 | 58 | 136 | 78 | 35-40 |
| 60 | 24 | 120 | 297 | 50 | 240 | 120 | 35-60 |
| 73 | 29 | 120 | 225 | 43 | 240 | 103 | 35-60 |
| 80 | 32 | 64 | 248 | 63 | 95 | 59 | 30-34 |
| 80 | 32 | 100 | 212 | 46 | 200 | 92 | 35-40 |
| 85 | 34 | 100 | 195 | 44 | 221 | 97 | 35-40 |
| 90 | 36 | 100 | 178 | 41 | 216 | 88 | 35-40 |
| 100 | 39 | 55 | 200 | 61 | 88 | 53 | 25-30 |
| 100 | 39 | 80 | 176 | 47 | 150 | 70 | 35-37 |
| 110 | 43 | 80 | 153 | 43 | 130 | 56 | 35-37 |
| 120 | 47 | 55 | 158 | 55 | 88 | 48 | 25-30 |
| 120 | 48 | 70 | 138 | 44 | 135 | 59 | 30-34 |
| 135 | 53 | 55 | 133 | 50 | 86 | 43 | 25-30 |
| 135 | 54 | 64 | 121 | 44 | 100 | 44 | 26-31 |
| 150 | 61 | 64 | 101 | 42 | 98 | 41 | 25-30 |
| 160 | 64 | 64 | 100 | 38 | 100 | 38 | 26-31 |
| 160 | 64 | 55 | 92 | 35 | 120 | 42 | 30-34 |
| 180 | 72 | 48 | 91 | 43 | 78 | 66 | 27-29 |
| 180 | 72 | 55 | 84 | 37 | 100 | 37 | 25-30 |
| 200 | 80 | 48 | 77 | 38 | 74 | 28 | 27-29 |
| 195 | 77 | 55 | 75 | 33 | 105 | 34 | 25-30 |
| 230 | 90 | 48 | 63 | 33 | 85 | 28 | 27-29 |
| 280 | 110 | 40 | 51 | 31 | 85 | 26 | 20-24 |
| 250 | 100 | 40 | 60 | 36 | 70 | 25 | 20-24 |
| 355 | 140 | 34 | 37 | 27 | 58 | 15 | 20-24 |
| 305 | 120 | 40 | 43 | 27 | 68 | 18 | 22-24 |
| 380 | 150 | 31 | 36 | 29 | 46 | 13 | 21-23 |
| 420 | 165 | 31 | 30 | 24 | 46 | 11 | 21-23 |
| 460 | 180 | 27 | 28 | 26 | 56 | 14 | 20-22 |
Features:
High tension threshold and breaking point,high modulus,low elongation monofilament polyester yarn,Resist to chemicals, abrasion, heat and moisture,Minimal tension loss during stretching process,Improved registration due to stable fabric tension,Good antistatic,No surface treatment
MOQ and sample of polyester screen printing mesh:
Usually the MOQ is 30meter,if quantity is less that that sometimes is also OK,before that please contact with Cathy,Ci
Sample with size not more than 2meter can be supplied free, freight should be paid buyer.
Service of polyester screen printing mesh
Pre sale service:
- Inquiry and consulting support.
- Sample testing support.
- View our Factory.
After sale service:
- Sending tracking number soon.
- Training how to use it
- Changing for new if dissatisfaction
