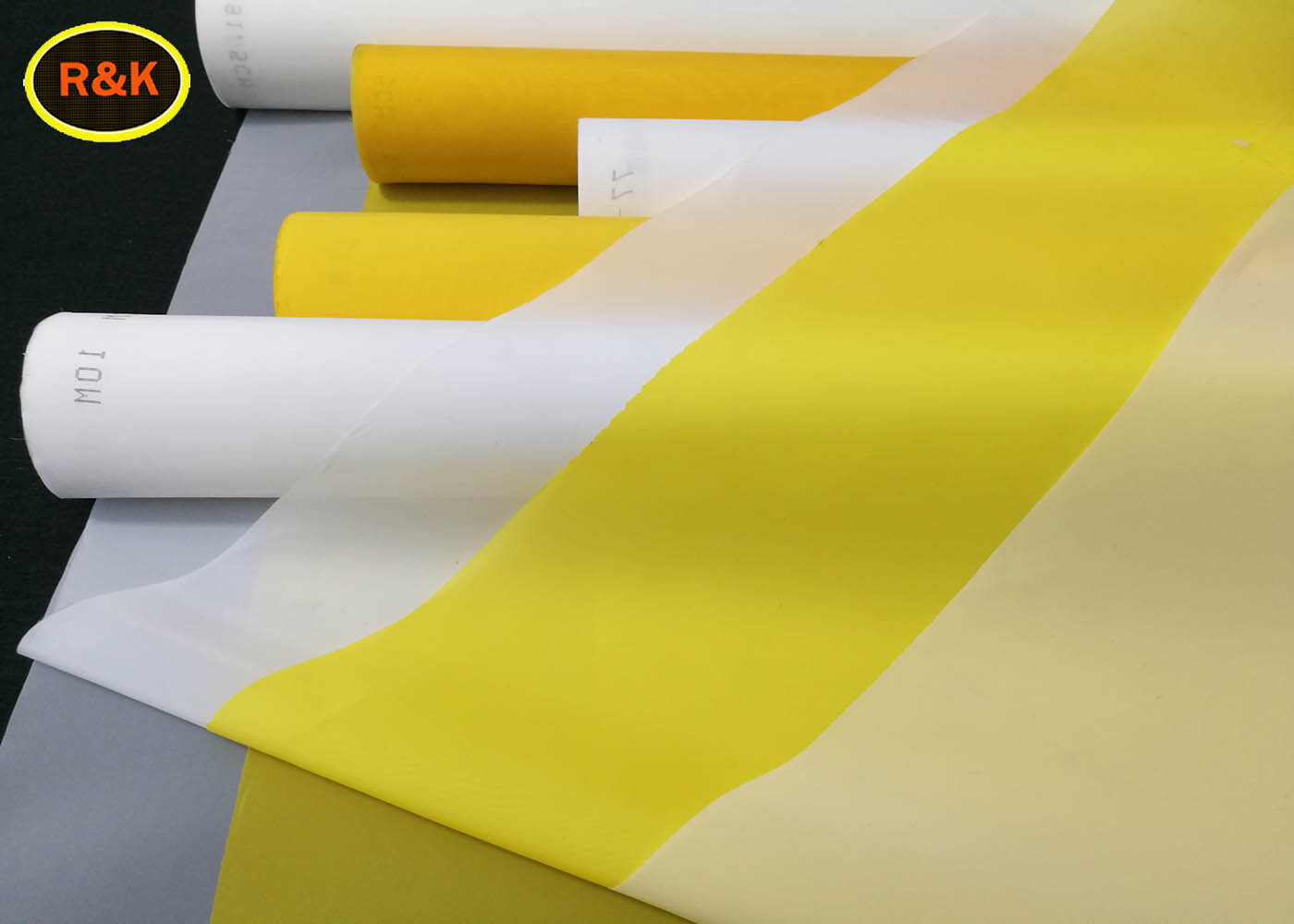

Standard Size Polyester Screen Printing 80T Mesh For Artwork Printing
Description For Monofilament Screen Printing Mesh:
Polyester is quite stable than nylon. It is flexible but flexible enough to handle the normal irregularities of most substrates.
About 80% of screen printing applications rely on monofilament polyester, and the type we make is said to have higher quality.
It is almost a "universal" grid because it is hardly affected by changes in climatic conditions.
Our polyester meshes maintain a higher tension and have greater dimensional stability than conventional mesh.
Specification For Monofilament Screen Printing Mesh:
Mesh Count
Diameter
(Mesh/inch μm) | Mesh
Count
(Mesh
/Inch) | Weave | Aperture
(μm) | Thread
Diameter
(μm) | Opening
(%) | Thickness(μm) | Thickness
Tollerance
(+/- μm) | Theoretical
lnk(cm3/m2) | Weight
(g/m2) |
| 28-140PW(SL) | 70 | 1:1 | 217 | 140 | 40 | 195 | 13 | 76 | 125 |
| 32-55PW(S) | 81 | 1:1 | 257 | 55 | 67 | 103 | 6 | 67 | 28 |
| 32-64PW(S) | 81 | 1:1 | 248 | 64 | 63 | 95 | 6 | 56 | 32 |
| 32-100PW(T) | 81 | 1:1 | 212 | 100 | 45 | 165 | 8 | 73 | 75 |
| 36-90PW(T) | 92 | 1:1 | 183 | 90 | 44 | 150 | 8 | 65 | 68 |
| 39-55PW(S) | 100 | 1:1 | 177 | 55 | 56 | 88 | 6 | 55 | 30 |
| 40-80PW(T) | 103 | 1:1 | 166 | 80 | 44 | 133 | 7 | 59 | 60 |
| 43-80PW(T) | 110 | 1:1 | 149 | 80 | 41 | 130 | 7 | 53 | 64 |
| 47-45PW(S) | 120 | 1:1 | 166 | 45*2 | 61 | 80 | 6 | 42 | 40 |
| 47-55PW(S) | 120 | 1:1 | 152 | 55 | 51 | 88 | 6 | 48 | 34 |
| 48-70PW(T) | 122 | 1:1 | 133 | 70 | 41 | 115 | 6 | 47 | 55 |
| 53-45PW(S) | 135 | 1:1 | 143 | 45*2 | 57 | 79 | 7 | 41 | 46 |
| 53-55PW(S) | 135 | 1:1 | 133 | 55 | 50 | 86 | 6 | 42 | 40 |
| 54-64PW(T) | 137 | 1:1 | 115 | 64 | 39 | 100 | 5 | 39 | 51 |
| 54-70(PW)HD | 137 | 1:1 | 109 | 70 | 35 | 116 | 6 | 40 | 62 |
| 61-64PW(T) | 155 | 1:1 | 90 | 64 | 31 | 101 | 5 | 30 | 58 |
| 64-55PW(S) | 160 | 1:1 | 98 | 55 | 38 | 98 | 5 | 36 | 48 |
| 64-64PW(T) | 160 | 1:1 | 85 | 64 | 30 | 115 | 6 | 34 | 61 |
| 68-55PW(S) | 175 | 1:1 | 85 | 55 | 34 | 85 | 4 | 28 | 48 |
| 68-64PW(T) | 175 | 1:1 | 78 | 64 | 28 | 105 | 5 | 30 | 65 |
| 72-48PW(S) | 182 | 1:1 | 90 | 48 | 36 | 78 | 5 | 33 | 39 |
| 72-55PW(T) | 182 | 1:1 | 85 | 55 | 30 | 90 | 5 | 27 | 51 |
| 77-48PW(S) | 195 | 1:1 | 77 | 48 | 35 | 80 | 4 | 28 | 42 |
Characteristic For Monofilament Screen Printing Mesh:
Low ductility and high tensile strength;
Imported fabric strength;
High durability and optimum tension;
Beautiful appearance, standard size;
Clean, never dip;
Wear-resistant, corrosion-resistant, heat-resistant and heat-resistant,
Application For Monofilament Screen Printing Mesh:
Typical applications include apparel design, balloons, artwork, stickers, signage, labels, fabrics, and countless visual graphics and labels for consumer products.
In general, the textile industry is one of the largest users of screen printing for fabrics for upholstery, linen, bedspreads and other household items.
Screen printing is used by companies and organizations around the world for promotional products, brand awareness and marketing, including technology, military and industrial.
In addition, screen printing on printed electronics, semiconductors, machinery,
And control panels to provide information, warnings or instructions when using electrical or mechanical instruments.
