Stainless Steel Printing Mesh Fabric SUS 304N 316 Screen Printing Materials

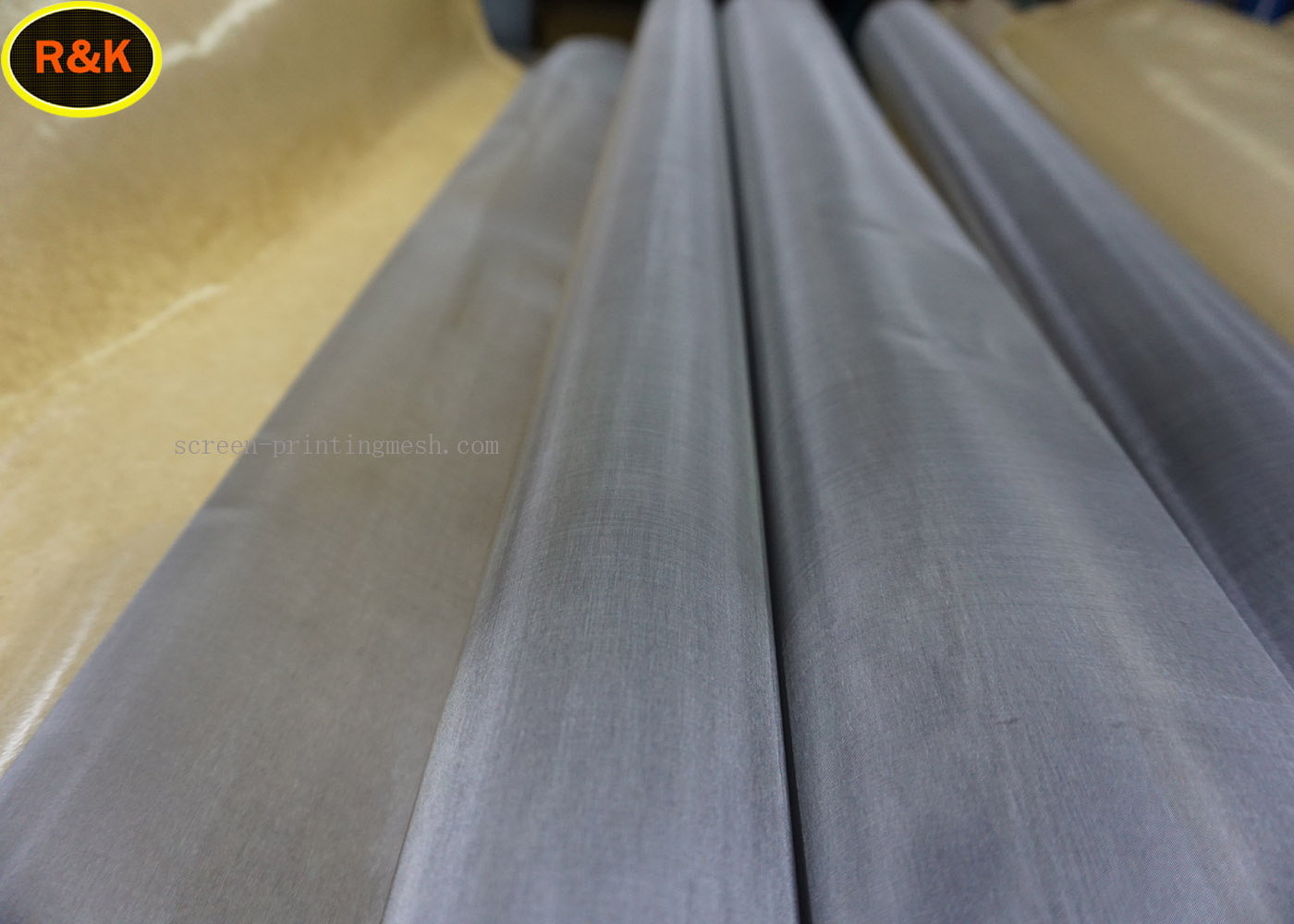

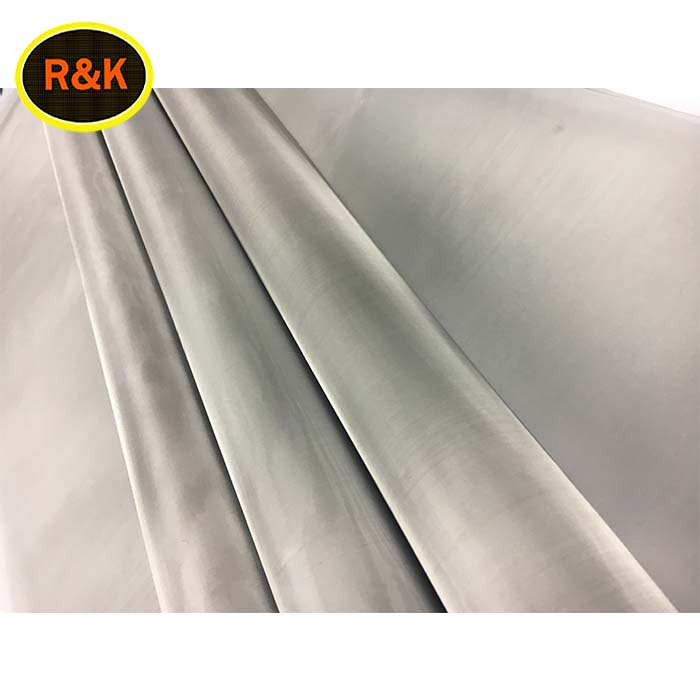

Descriptions of stainless steel screen printing mesh:
stainless steel screen printing mesh is woven by monofilament stainless steel wire ,plain weave,it is suitable to severe enviroment especially,also, and it is suitable to multi-color overprint and printing batch.it can work normaliy under 480 degree,and the methods printing is flexible and diverse.it with the best raw metarial.
Material: SUS304N,304HPS,316L.the other material is available.
Mesh count: 40-500 Mesh/Inch
Roll Length: 30m in general per roll or follow your request.
Aperature style: Square hole.
Thickness: 36-240 micron meter,special thickness is different according to the meshes of the wire cloth,the calendared thickness can be 28-240 micron.
Weave: Plain weave
Features of stainless steel screen printing mesh:
a. acid and alkali resistance
b. high tension and low elongation
c. corrosion and abrasion resistance
d. good permeability and super pricision
e. high flexibility at extreme tension and non-electrostatic and ensure the safety of the printing
f. special printing performance such as good solvent resistance and heat-melting resistance, and so forth.
Specifications of stainless steel screen printing mesh:
| Mesh/Inch | Wire Diameter (μm) | Aperture(μm) | Open Area (%) | Thickness(μm) | Theoretical Ink (cm3/m2) |
| 40 | 160 | 475 | 56.0 | 300-320 | 179.1 |
| 60 | 120 | 303 | 51.3 | 230-245 | 123.21 |
| 80 | 50 | 268 | 71.0 | 95-100 | 78.0 |
| 80 | 90 | 228 | 52.0 | 175-180 | 103.0 |
| 80 | 120 | 198 | 39.0 | 235-245 | 92.9 |
| 100 | 100 | 154 | 36.8 | 195-205 | 77.2 |
| 120 | 80 | 132 | 39.0 | 155-165 | 65.8 |
| 150 | 60 | 109 | 41.7 | 115-124 | 50.0 |
| 165 | 35 | 119 | 60.0 | 70-75 | 48.0 |
| 165 | 45 | 109 | 50.1 | 88-93 | 45.1 |
| 165 | 50 | 104 | 45.6 | 97-105 | 45.6 |
| 180 | 45 | 96 | 46.4 | 88-93 | 41.5 |
| 180 | 50 | 91 | 42.0 | 98-104 | 41.7 |
| 200 | 40 | 87 | 46.9 | 82-84 | 43.0 |
| 200 | 50 | 77 | 37.0 | 98-103 | 42.0 |
| 230 | 35 | 75 | 46.7 | 72-76 | 37.0 |
| 250 | 40 | 62 | 36.8 | 82-86 | 34.0 |
| 250 | 30 | 72 | 49.7 | 64-68 | 30.0 |
| 250 | 35 | 67 | 43.0 | 76-78 | 32.0 |
| 270 | 35 | 59 | 39.4 | 76-80 | 30.0 |
| 290 | 20 | 68 | 41.7 | 43-44 | 18.0 |
| 300 | 30 | 55 | 38.0 | 66-68 | 28.0 |
| 325 | 28 | 50 | 41.2 | 63-64 | 26.4 |
| 325 | 23 | 55 | 49.8 | 49-53 | 25.4 |
| 350 | 25 | 48 | 43.0 | 52-54 | 18.7 |
| 400 | 23 | 41 | 40.7 | 50-54 | 19.0 |
Stainless steel screen printing mesh applications:
1)Architectural mesh
2)Filtration for liquid or gas
3)Fly screen/Security mesh
4)Food Processing
5)Screening/Sieving
6)Plastic & Rubber Extrusion Industry
7)Screen printing on glassware,printed circuit boards
