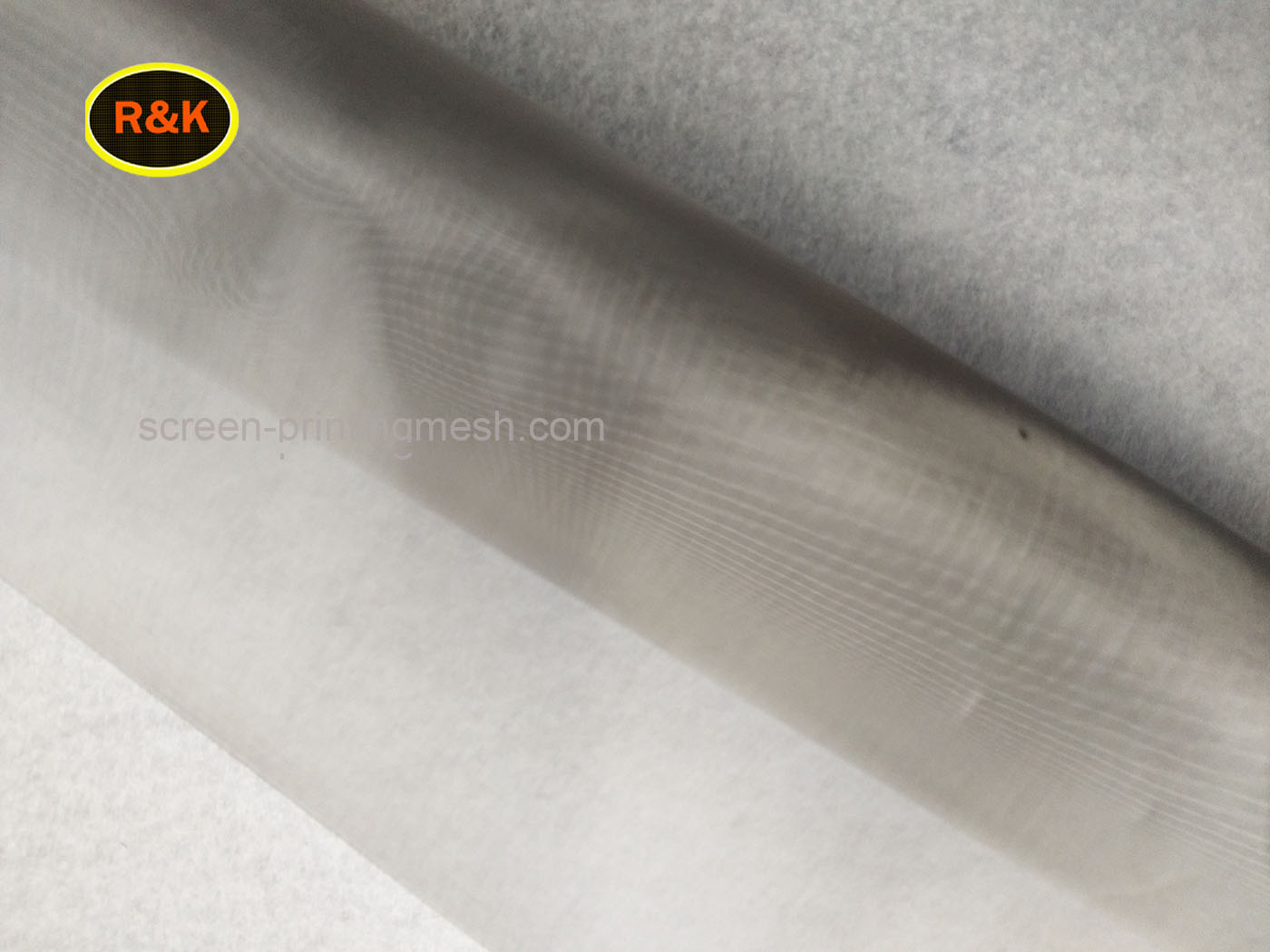

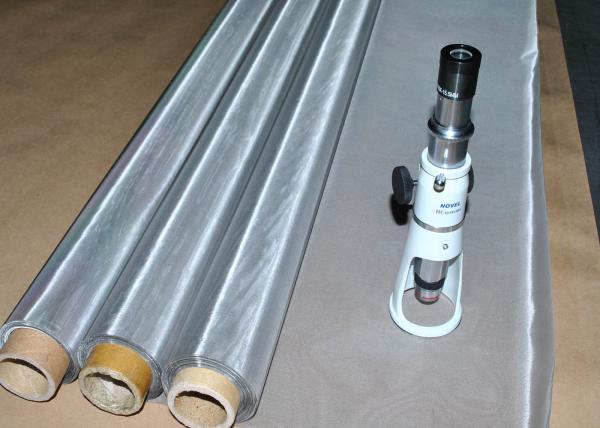

Healthcare Stainless Steel Screen Printing Mesh Stainless Steel Cloth
Description of the Steel Screen Printing Mesh :
| Material | SUS304N |
| Weave | Plain weave |
| Features | Non-electrostatic |
| Sample | Free.The freight should be paid by buyer |
| Width | 1m,1.22m |
Crimp mesh is a coarse wire mesh.The coil diameter of crimping net is larger than that of stainless steel mesh. If the strength is high, the wire mesh can be crimped, which can be used as a safety net, a coal mine screen mesh and a wire mesh.
Dutch weave net is another kind of stainless steel woven wire mesh, the mesh with weft yarn count is different, the thickness is greater than the stainless steel mesh, Dutch woven mesh is widely used in environmental protection equipment of micron filtration material.
Featuers of the Steel Screen Printing Mesh :
High-Flexibility:The wire mesh will not lose elasticity at extremely tension.
High tension.Much higher tension than common polyester mesh,and this property is very stable.
Low Elongation:Very small elongation of wire mesh at igh tension.
High-Corrosion Resistance:The excellent corrosion resistance of stainless steel wire exceeds polyester fiber.
Non-electrostatic:To avoid affects of nonelectrostatic for printing and ensure the safety of printing.
Good Solvent Resistance:To avoid the affects of any solvents to wire mesh and to ensure the safety of printing.
Specification of the Steel Screen Printing Mesh :
| Specification | Mesh/inch | Wire Dia (μm) | Open area Ratio(%) | Apereture (μm) | Thickness(mm) | Calendered Thickness (μm) | Theoretical lnk(cm2/m2) |
| 230*230*35 | 230 | 35 | 46.7 | 75 | 72-76 | 50-67 | 37.0 |
| 250*250*40 | 250 | 40 | 36.8 | 62 | 82-86 | 50-80 | 30.0 |
| 270*270*35 | 270 | 35 | 39.4 | 59 | 76-80 | 58-70 | 30.0 |
| 300*300*30 | 300 | 80 | 41.7 | 55 | 66-68 | 40-59 | 28.0 |
| 325*325*30 | 325 | 30 | 38 | 48 | 66-68 | 45-60 | 24.0 |
| 325*325*28 | 325 | 28 | 41.2 | 50 | 63-64 | 40-56 | 26.4 |
| 350*350*25 | 350 | 25 | 43.0 | 48 | 52-54 | 41-50 | 18.7 |
| 400*400*23 | 400 | 23 | 40.7 | 41 | 50-54 | 35-48 | 19.0 |
| 500*500*18 | 500 | 18 | 41.7 | 33 | 36-40 | 28-30 | 15.3 |
| 200*200*50 | 200 | 0.05 | 37 | 77 | 98-103 | As order | 42.0 |
Application of the Steel Screen Printing Mesh :
The stainless steel printing screen has many functions, such as making solar cells.pint board (PCB),chip electronic components,flat panel displays,liquid crystal display (LCD),plasma display panel (PDP), etc.
Please feel free to contact us if you wish to know more.
